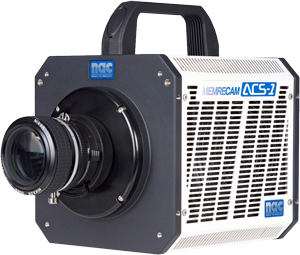

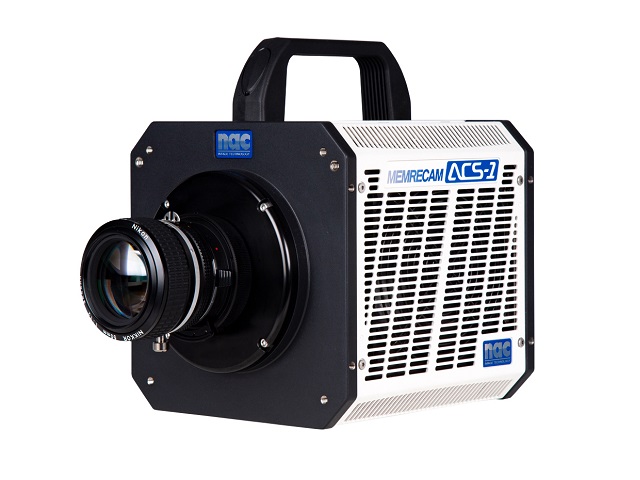

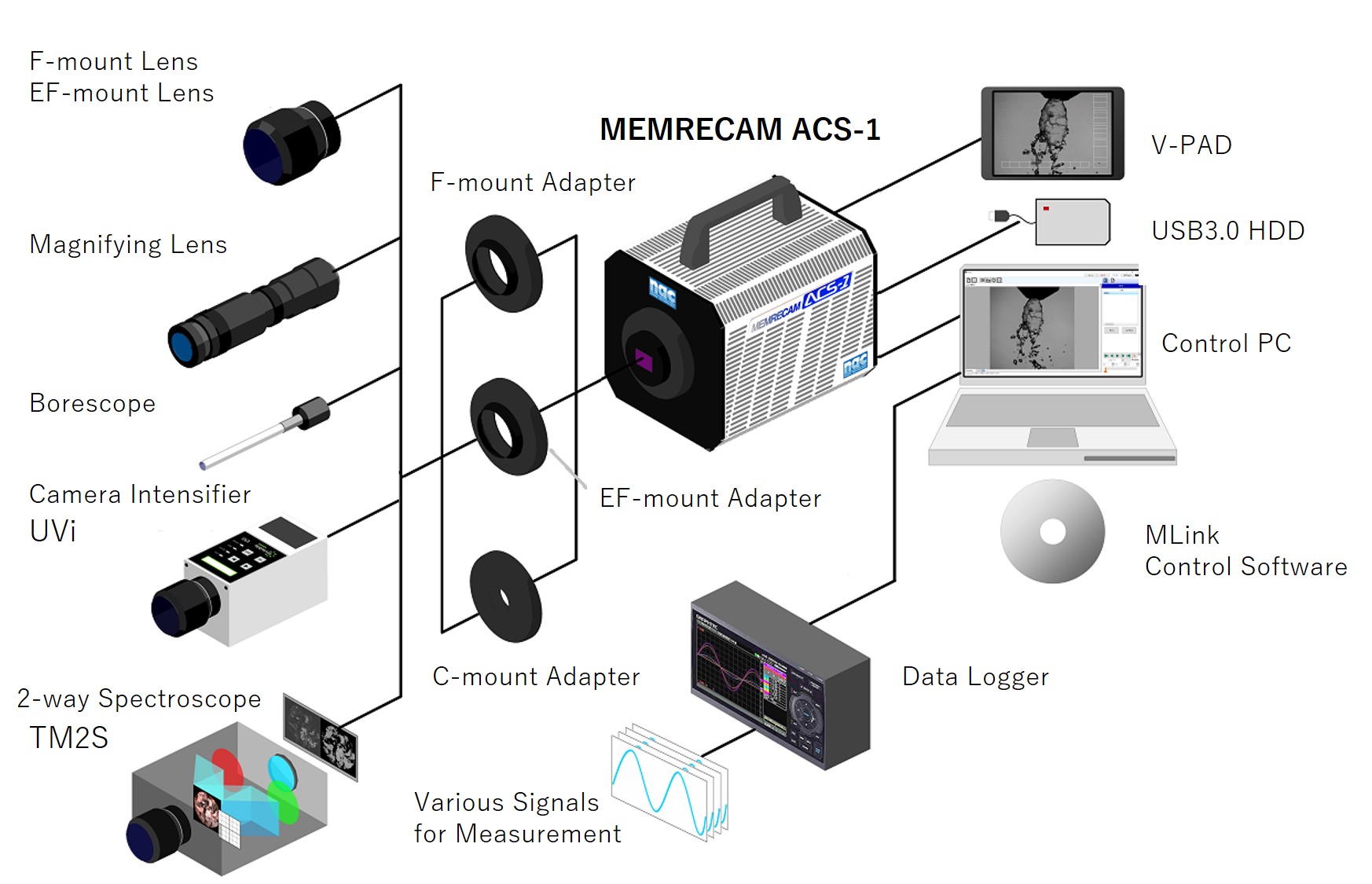

MEMRECAM ACS-1 M60 / M40 / M30
World's First 60 Gigapixel Per Second High Speed Video Camera

High Speed / High Resolution

1280 X 800 60,000fps (M60)
1280 X 896 100,000fps (M60)^*1
1280 X 896 150,000fps (M60) ^*2
*1 In Boost mode
*2 In Boost4 mode

Long Recording Time / Faster Data Transfer

64GB / 128GB / 256GB
Faster Data Transfer to Optional SSD

High Sensitivity / High Quality

Color ISO ~40,000 / Mono ISO ~200,000
Superior High Dynamic Range
User Selectable Bit Depth

Compact

Dimension: 175W X 175H X 206D mm
Weight: Approx. 7.3kg

Data Sheet

MEMRECAM ACS-1 M60/M40/M30 Datasheet

The Latin word Acies (ACS for short) is defined as the full attention of one's sight and senses, as directed towards a particular object. Based on that description, what an appropriate name for nac's new MEMRECAM high speed camera system!

Additional Product Details

Features

High Speed and High Resolution
The ACS-1 M60 offers full frame, 1280 x 896 resolution up to 54,000fps, 1280 x 800 resolution at 60,000fps and 1280 x 448 resolution at 100,000fps in normal mode. Frame rates up to 1 million fps are available with reduced resolutions. At an incredible 60 Gigapixels per second, the ACS-1 M60 offers frame rate and resolution combinations that are far superior to any other high-speed cameras in its class.

Boost Mode/Boost4 Mode
Boost Mode *1 combines nac's unique sensor technology with a proprietary signal processing method to increase frame rate and resolution with little or no image degradation. This is a powerful tool for any application requiring higher frame rates and larger resolutions.

*1 Boost Mode is currently available on monochrome models only.

Boost up Frame Rates
@1280 x 896 pixels (M60)
Normal Mode: 50,000fps -> Boost Mode: 100,000fps -> Boost4 Mode: 150,000fps

Boost up Resolutions
@150,000fps (M60)
Normal Mode: 1280x288 pixels -> Boost Mode: 1280x544 pixels -> Boost4 Mode: 1280x896 pixels

Boost Mode Example: Both images taken at same frame rate (Left: Normal Mode, Right: Boost Mode)

High Light Sensitivity ISO 100,000
All ACS series cameras are equipped with state-of-the-art CMOS sensors featuring extremely high light sensitivity (monochrome ISO 100,000). Even in low light environments, the ACS produces bright, dynamic, and crisp images, making the ACS-1 M60 an ideal tool for high magnification and microscope applications – no need for bright lights on heat sensitive subjects.

Conventional Model

ACS-1

Image Trigger
The Image Trigger is a unique function that automatically triggers the camera by detecting a small brightness change in a user defined Area of Interest (AOI) within the live image. This allows users to trigger the ACS camera by detecting changes in the image due to motion or variations in light intensity where a traditional trigger signal may not be available. With most image based triggers, brightness changes in the entire field of view is required to detect an event. With the ACS, users can define an image trigger AOI as small as 21x16 pixels within the entire image. This allows for much more accurate image triggering to capture elusive events where even the smallest image change can be detected and captured.

Large Memory Capacity and Memory Segmentation
The ACS-1 can accommodate up to 256GB of onboard DRAM, allowing for longer recording times compared to most traditional high-speed cameras. In addition, an optional one terabyte (1TB) built-in SSD storage drive is available, allowing high-speed transfer of image data directly from camera memory to mass storage media. The ACS also features Memory Segmentation which allows users to divide the available memory into several shorter segments, enabling repeated recordings to be made in quick succession without the delay of downloading images to a PC. Once all the memory segments are recorded, the user can select which segments to download.

Easy Synchronization of Multiple Cameras

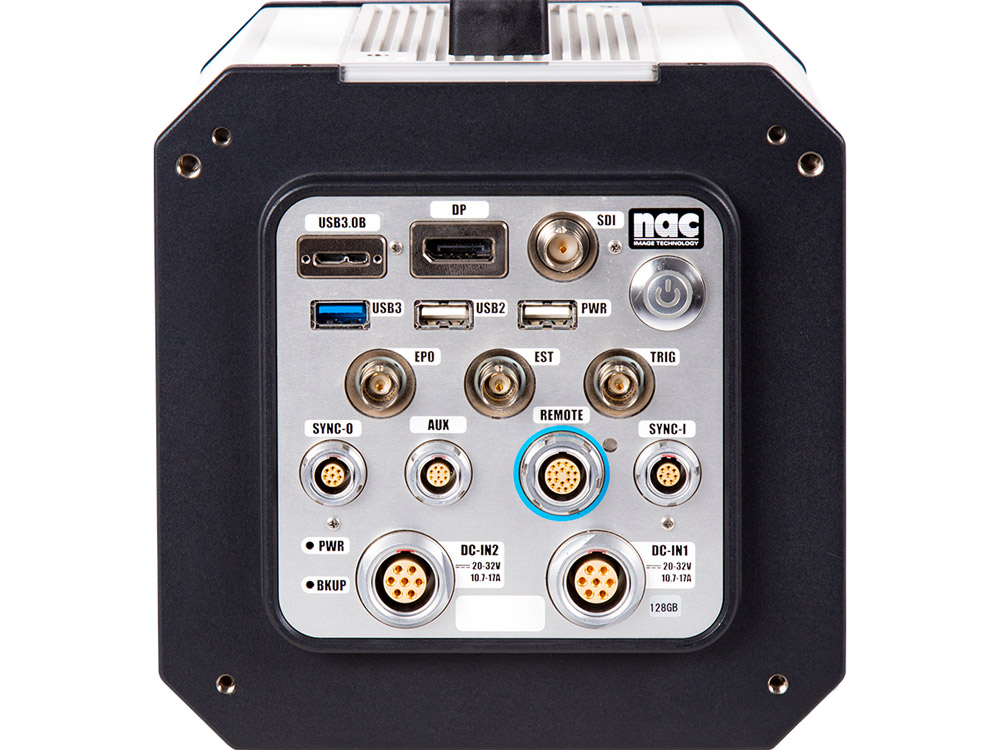

With both SYNC-IN and SYNC-OUT connectors on its rear panel, the ACS offers incredibly simple and accurate camera synchronization. ACS cameras can be synchronized to each other using a single sync cable. No trigger distribution boxes or external sync devices are required.

Super-Fast download speed with USB3.0B
Using a USB3.0 Micro-B connection, the ACS offers super-fast image download over an industry standard interface. With download speeds in excess of 325MB/second *2 , large image sequences can be downloaded in a matter of seconds. Using the ACS's DOWNLOAD REC function, the user can continue recording images while transferring previously recorded data to PC or SSD in the background, creating a much more efficient workflow. Images can be downloaded directly to any attached USB3.0 (or USB2.0) external device with no PC necessary *3

*2: Download rates are dependent on PC performance.
*3: An optional V-PAD is required to transfer the data without PC.

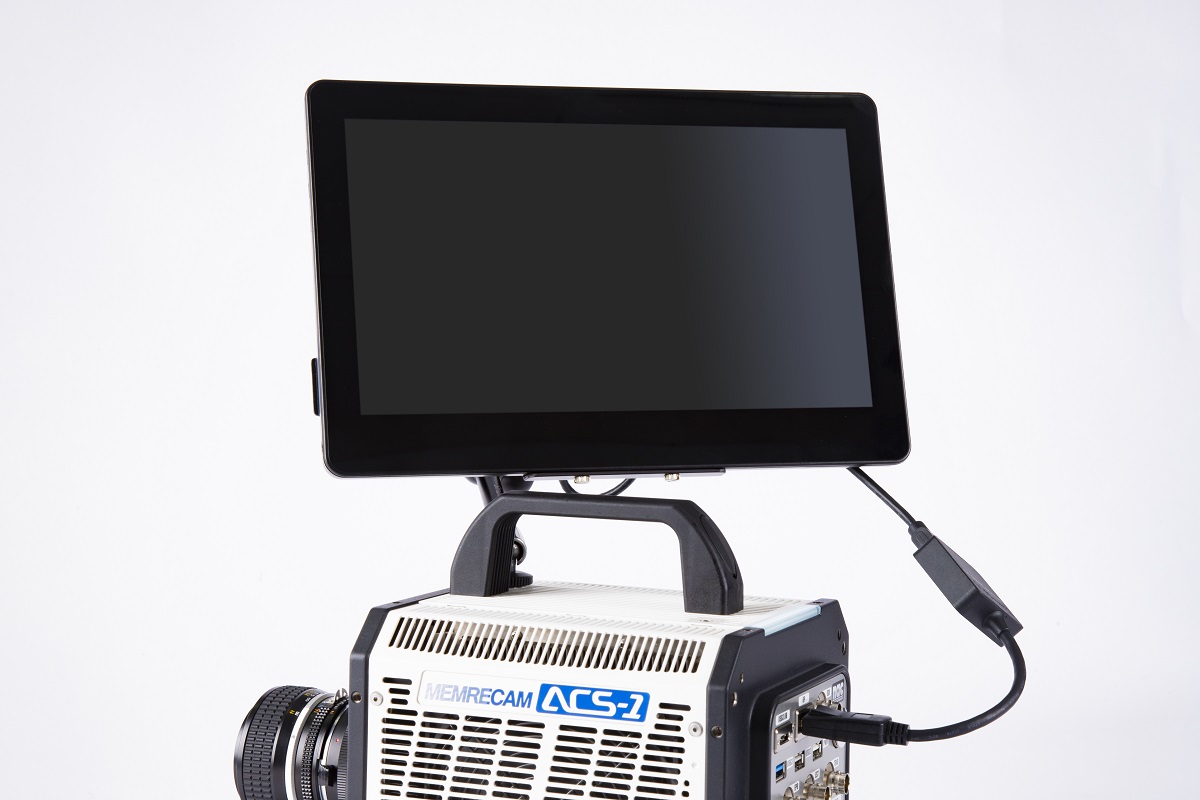

V-PAD Touchscreen Monitor for ACS series
No PC, no problem! The ACS series V-PAD offers a beautiful HD viewfinder with full touchscreen camera control. Whether you are out in the field or in a restricted area where PC control is not practical, the V-PAD allows for full control of the ACS camera – from setup, to capture, to review, to saving – all with an intuitive touch screen interface.

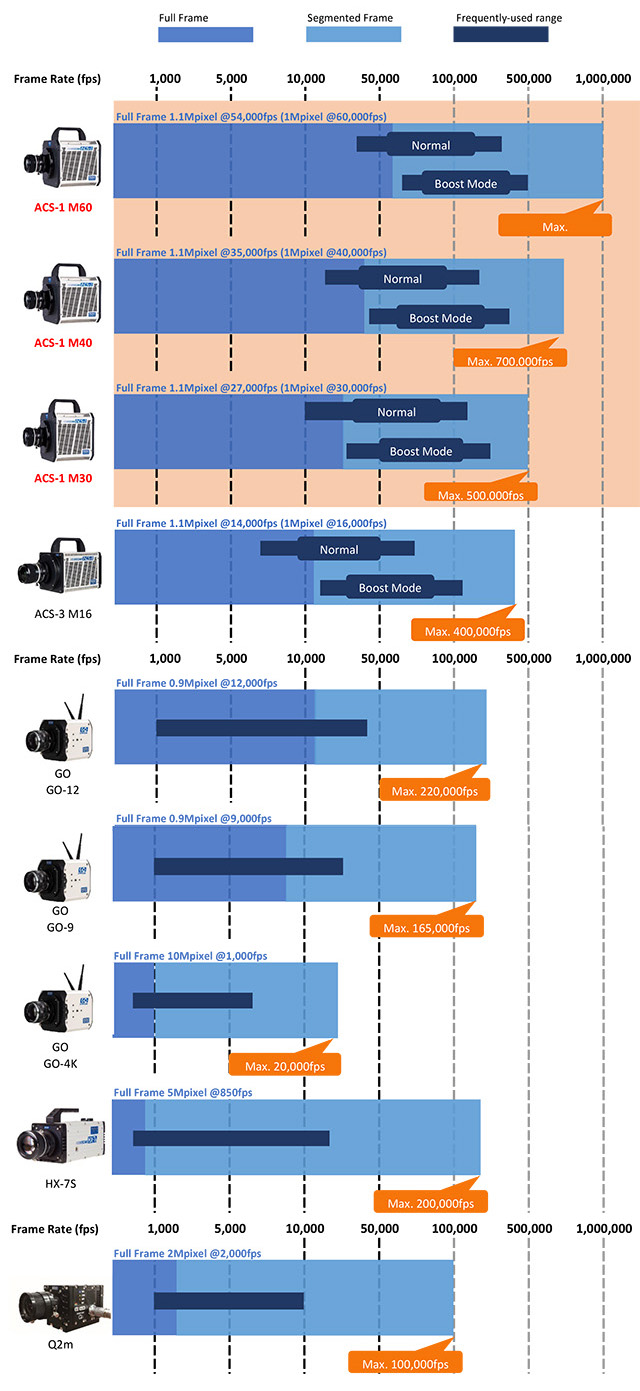

Comparison Table of nac High-Speed Cameras

Specifications

Model	ACS-1 M60	ACS-1 M40	ACS-1 M30
Sensor	1.14M Pixel CMOS sensor
ISO (REI)	Color ISO5,000~40,000 / Mono ISO25,000~200,000
Electric Shutter	1/10~1/2,500,000sec	1/10~1/1,666,666sec	1/10~1/1,666,666sec
Memory^*1	64GB/128GB/256GB
Memory Segment	Up to 64 Segments selectable
Built-in SSD^*2	Faster Image Download to Built-in SSD. Backup Image data while recording
Recording Time	Approx. 2.8 sec Normal Mode (12bit, 60,000fps, 1,280x800pixel, 256GB)	Approx. 4.2 sec Normal Mode (12bit, 40,000fps, 1,280x800pixel, 256GB)	Approx. 5.6 sec Normal Mode (12bit, 30,000fps, 1,280x800pixel, 256GB)
	Approx. 3.0 sec Boost Mode (12bit, 100,000fps, 1,280x896pixel, 256GB)	Approx. 4.6 sec Boost Mode (12bit, 65,000fps, 1,280x896pixel, 256GB)	Approx. 6.0 sec Boost Mode (12bit, 50,000fps, 1,280x896pixel, 256GB)
	Approx. 4.0 sec Boost4 Mode (12bit, 150,000fps, 1,280x896pixel, 256GB)	Approx. 5.0 sec Boost4 Mode (12bit, 120,000fps, 1,280x896pixel, 256GB)	N/A
Bit Depth	8/10/12bit selectable
Lens Mount^*2	F-mount (supports lenses without iris ring) C-mount and EF-mount interchangeable
Input Signal	EST, Trigger (Contact Closure and TTL), IRIG-B (AM), ARM CMD, and PWR CTL
Output Signal	Exposure pulse, ARM status, FAULT status, Display Port, Trigger, and VD OUT
Trigger Mode	NORMAL, EVENT, BURST, MULTI, LINEAR and others
Interface	1,000Base-T, USB3.0B, USB3.0, and USB2.0
Control Software	MLink (included with camera)
Power	20~32VDC (supplied by the optional AC Adapter)
Dimensions^*3	Approx. 175W x 175W x206D mm
Weight^*4	Approx. 7.3kg

Other Functions

Boost Mode	Proprietary sensor and signal processing method to increase frame rate and resolution over Standard Mode
Auto Black Balance	Mechanical Calibration Shutter
Sync Rec	Full synchronized recording is available with GX-HUB.^*2
Frame Straddling Shooting	Record continuous image pairs for PIV analysis Support minimum 210ns laser pulse
Dual Frame Rates	Switchable between High and Low Speed recording Low speed can be set between 1/2~1/100 of High Speed Recording.
DOWNLOAD REC	Recording to a memory segment in parallel with downloading to another memory segment
Image Trigger	Triggered by detected shifts in pixel intensity. AOI as small as 21 x 16 pixels
Post Trigger	Delay Trigger. Duration from trigger input to starting rec can be set up to 65,536 frame or 10 minutes.
AND/OR Trigger	AND or OR conditions can be programmed for trigger signals input to TRIG1 and 2.
Trigger Reset	Start exposing when trigger signal is input
EST Sync Mode	Sync with external signal

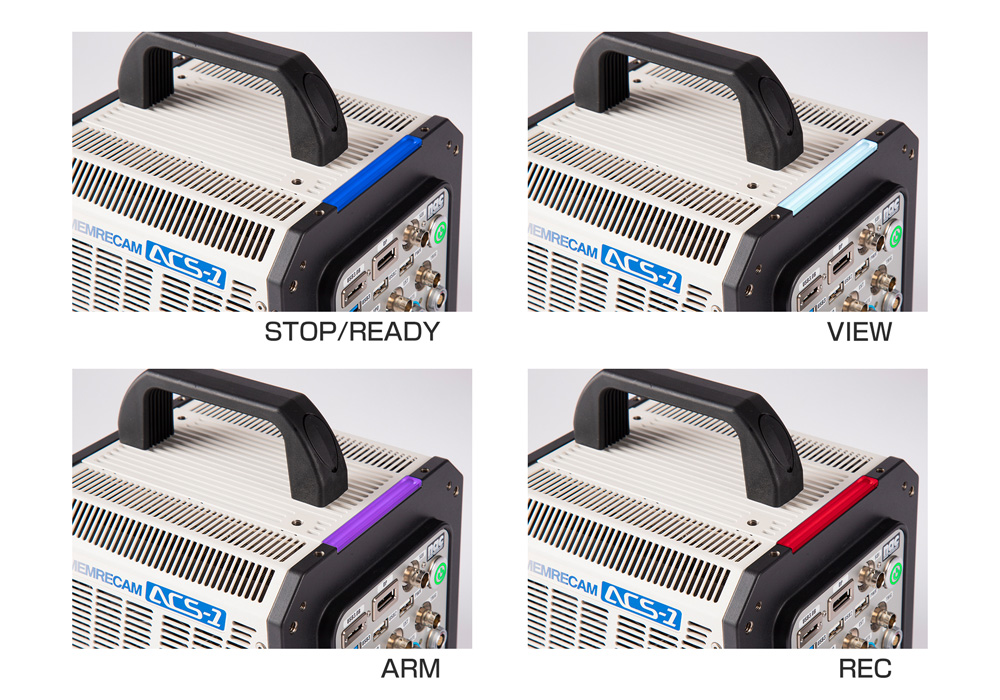

CAM MODE LED	Status: LED: View/Arm/Rec VIEW ARM REC
Fan Control	Pause/Auto fan control/Forced cooling mode

*1 Selectable at the time of ordering
*2 Optional accessories
*3 Dimensions without handle or optional accessories
*4 Weight without accessories
*5 Boost Mode is available only with Mono models.
Specifications described above are subject to change without notice.

Sample Recording Times

ACS-1 M60

Frame Rate	Pixel		Recording Time in sec.
(fps)	H	V	64GB	128GB	256GB
~54,000	1280	896	0.70	1.40	2.81
60,000	1280	800	0.70	1.41	2.84
75,000	1280	624	0.72	1.45	2.91
100,000	1280	448	0.76	1.52	3.04
200,000	1280	192	0.88	1.77	3.55
300,000	1280	96	1.18	2.36	4.73
400,000	1280	48	1.77	3.54	7.1
500,000	1280	32	2.12	4.25	8.52
700,000	1280	16	3.04	6.08	12.17
1,000,000	1280	16	2.12	4.25	8.52

ACS-1 M40

Frame Rate	Pixel		Recording Time in sec.
(fps)	H	V	64GB	128GB	256GB
~35,000	1280	896	1.08	2.17	4.34
40,000	1280	800	1.06	2.12	4.26
50,000	1280	640	1.06	2.12	4.26
60,000	1280	528	1.07	2.15	4.30
75,000	1280	400	1.13	2.27	4.54
100,000	1280	288	1.18	2.36	4.74
200,000	1280	112	1.52	3.04	6.08
300,000	1280	48	2.36	4.73	9.46
400,000	1280	32	2.66	5.32	10.65
500,000	1280	16	4.25	8.51	17.04
700,000	1280	16	3.04	6.08	12.17

ACS-1 M30

Frame Rate	Pixel		Recording Time in sec.
(fps)	H	V	64GB	128GB	256GB
~27,000	1280	896	1.40	2.81	5.63
30,000	1280	800	1.41	2.83	5.68
40,000	1280	592	1.43	2.87	5.75
50,000	1280	464	1.46	2.93	5.87
60,000	1280	368	1.54	3.08	6.17
75,000	1280	288	1.57	3.15	6.31
100,000	1280	208	1.63	3.27	6.55
200,000	1280	64	2.66	5.32	10.65
300,000	1280	32	3.54	7.09	14.20
400,000	1280	16	5.32	10.64	21.30
500,000	1280	16	4.25	8.51	17.04

* Recording Time is with 12-bit recording in Normal Mode (without memory segmentation and block partitioning)
* H x V Resolutions can be specified as per the unit of 16x16 pixels (When in Normal Mode).

Resolution Chart

ACS-1 M60
Frame Rate (fps)	Normal Mode H×V(pixel)	Boost Mode *5 H×V(pixel)	Boost4 Mode *5 HxV (pixel)
50~54,000	1280×896	-	-
60,000	1280×800	1280×896	-
65,000	1280×736	1280×896	-
75,000	1280×624	1280×896	-
100,000	1280×448	1280×896	-
120,000	1280×368	1280×704	1280x896
150,000	1280×288	1280×544	1280x896
200,000	1280×192	1280×384	1280x768
300,000	1280×96	1280×192	1280x384
400,000	1280×48	1280×96	1280x192
500,000	1280×32	1280×64	1280x128
700,000	1280×16	1280×32	1280x64
1,000,000	1280×16	1280×32	-

ACS-1 M40
Frame Rate (fps)	Normal Mode H×V(pixel)	Boost Mode *5 H×V(pixel)	Boost4 Mode *5 H×V(pixel)
50~35,000	1280×896	-	-
40,000	1280×800	1280×896	-
45,000	1280×720	1280×896	-
50,000	1280×640	1280×896	-
60,000	1280×528	1280×896	-
65,000	1280×480	1280×896	-
75,000	1280×400	1280×800	1280x896
100,000	1280×288	1280×576	1280x896
120,000	1280×224	1280×448	1280x896
150,000	1280×176	1280×352	1280x704
200,000	1280×112	1280×224	1280x448
300,000	1280×48	1280×96	1280x192
400,000	1280×32	1280×64	1280x128
500,000	1280×16	1280×32	1280x64
700,000	1280×16	1280×32	1280x64

ACS-1 M30
Frame Rate (fps)	Normal Mode H×V(pixel)	Boost Mode *5 H×V(pixel)	Boost4 Mode *5 HxV (pixel)
50~27,000	1280×896	-	N/A
30,000	1280×800	-	N/A
40,000	1280×592	-	N/A
50,000	1280×464	1280×896	N/A
60,000	1280×368	1280×736	N/A
75,000	1280×288	1280×576	N/A
100,000	1280×208	1280×416	N/A
120,000	1280×160	1280×320	N/A
150,000	1280×112	1280×224	N/A
200,000	1280×64	1280×128	N/A
300,000	1280×32	1280×64	N/A
400,000	1280×16	1280×32	N/A
500,000	1280×16	1280×32	N/A
