HotShot INT (tethered head) Cameras
The HotShot INT Cameras are available in two (2) models. The standard system consists of: Camera Head & PCI Card, 5m Camera Link/Power Cable Assembly and Control Software. Upgraded INT camera system includes: Integrated Power/Trigger Assembly, Instrumentation Control Console and USB Micro Keyboard.
HotShot 1280 INT
- Available in color or monochrome versions
- Maximum resolution 1280 x 1024 pixels
- Maximum frame rates of 20,000 fps
- Max frame rate at full res 1280 x 1024 @ 500 fps

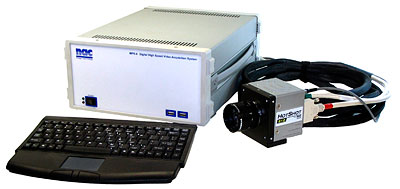

HotShot 512 INT
- Available in color or monochrome versions
- Maximum resolution 512 x 512 pixels
- Maximum frame rates of 70,000 fps
- Max frame rate at full resolution (512 x 512) @ 2,200 fps
Applications for the HotShot INT cameras: Manufacturing and Production, Research/Design/Test, Aerospace, Automotive Safety, Transportation, Range and Ballistics.
